3d Studio Max Arch & Design Preset Examples

Written September 26th, 2010
Categories: Articles, Rendering / Compositing, Textures / Materials
14 comments

The Arch & Design material presets.

In October of 2006, Autodesk implemented a material type called the “Arch & Design” material for the 3d Studio Max implementation of mental ray.  This material type is an elaborate construct of mental ray shaders and includes a useful set of preset material configurations that- with proper lighting- can make any render look special.

Today we’re going to take a deep dive into each one of these mental ray material presets.  By the end of this tutorial you’ll have a firm grasp over what each material does and when to use it.  One thing I’d like to note is that the 3dsMax documentation in this area is spectacular.

The material has a number of significant features:

  • Easy to use, yet flexible – more complicated than VRay, but much simpler than the usual mental ray standard.
  • Templates – allow fast access to settings combinations for common materials.
  • Physically accurate – the material is energy conserving, making it impossible to create shaders that break the laws of physics.
  • Glossy performance – advanced performance boosts including interpolation, emulated glossiness, and importance sampling.
  • Tweakable BRDF – the user can define how reflectivity depends on angle.
  • Transparency – “Solid” or “thin” materials: transparent objects such as glass can be treated as either solid or thin.
  • Round corners – simulate fillets to allow sharp edges to still catch the light in a realistic fashion.
  • Indirect Illumination control – set the final gather accuracy or indirect illumination level on a per-material basis.
  • Built-in Ambient Occlusion – for contact shadows and enhancing small details.

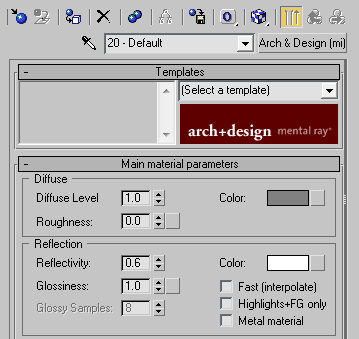

The Arch & Design Material Window

The Arch & Design Material Window

The Arch & Design Default

Let’s take a render of the mental ray Arch & Design material’s default configuration.  For this tutorial, we’ll be using the Stanford Dragon Model scene.  The grey material has some glossiness and specularity, but no special effects like blurring or transparency.

Arch & Design Defaults Render

Arch & Design defaults to a glossy grey material.

The Arch & Design Presets

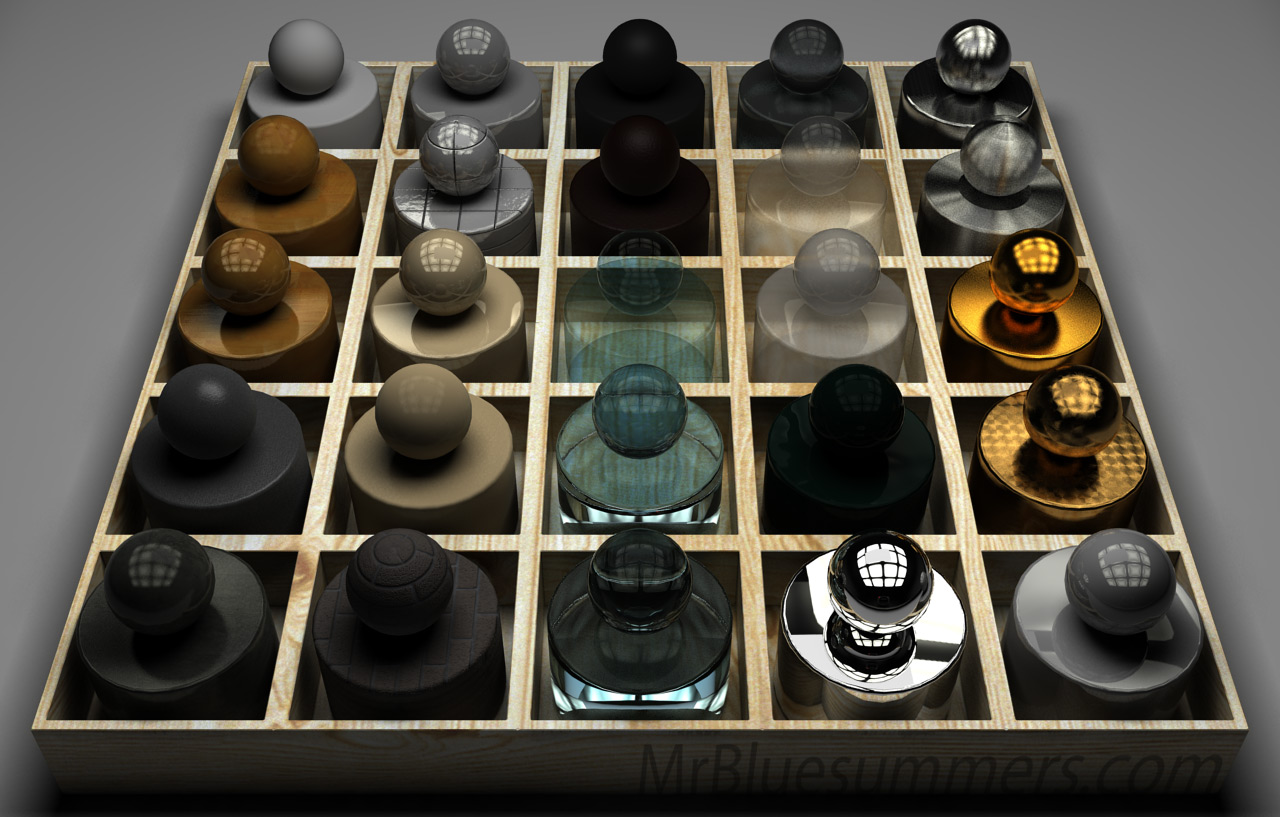

There are 28 individual presets in the 3d Studio Max Arch & Design material, of which only 23 are full materials.  Let’s take a quick look at each one and get a feel for what it’s used for.  Below is a high resolution render showing you what each material looks like relative to one another.  While some of the more elaborate ones like masonry aren’t too impressive, the basic materials like copper and solid glass are excellent.

The Arch & Design material presets.

Let’s look more closely at each one of these presets and how they differ from each other.  Remember that the render above is using one of the free high-resolution HDRI maps and smart lighting, while the images below are using a plain white background and some big area lights.  That’s a recipe for some pretty ugly renders, so don’t look at these materials and gag right away.  Remember that they look good under the right lighting.

Satin Varnished Wood

Satin Varnished Wood

The satin varnished wood material is a reasonable wood material that is fine for most purposes.  It includes a diffuse map that gives it a grain, but you’ll need UVW mapping in order for it to look right.  The satin finish means that there’s little glossiness/specularity so this might be appropriate for construction sites or old toys.

Glossy Varnished Wood

The glossy varnished wood material is very similar to the satin wood above.  The main difference is in the reflection, glossiness, and specularity parameters.  Whereas you’d select satin varnished wood for more rural wood selections, you’d pick glossy varnished wood as a base material for flooring or for polished wood furniture.

Glossy Varnished Wood

Rough Concrete

Rough concrete is a strong selection for more distant 3d objects like roads, sidewalks, and buildings.  However, you probably would select your own bitmap for close up objects, or use a different material entirely.

Rough Concrete

Polished Concrete

Polished concrete removes the bump map from the regular rough concrete material, and has higher specularity and glossiness settings.  This is a great choice for floors in showr0oms or clean warehouses.

Polished Concrete

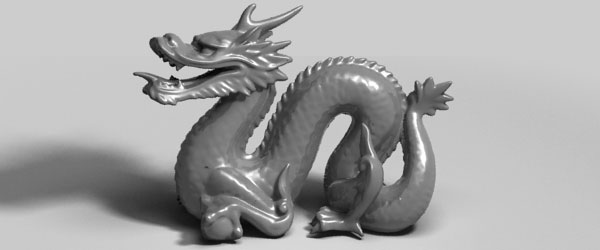

Glazed Ceramic

Glazed ceramic is your basic DGS material in mental ray.  It’s a typical medium glossiness/specularity material with some light reflections.

Glazed Ceramic

Glazed Ceramic Tiles

Glazed ceramic tiles is a twist on the ordinary glazed ceramic material where a tile bump/color map has been added.  While you have to dig down into the material in order to access the tile parameters like size and spacing, it does give you a quick way to get to tiled materials that look pretty convincing.

Glazed Ceramic Tile

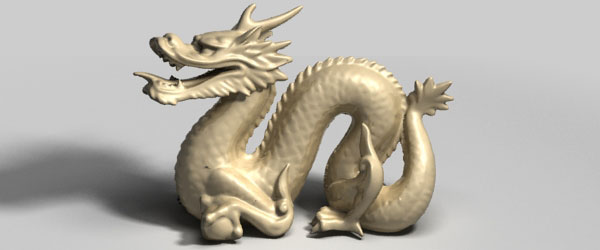

Glossy Plastic

Glossy plastic is similar to the ceramic material but with different reflection falloff parameters.

Glossy Plastic

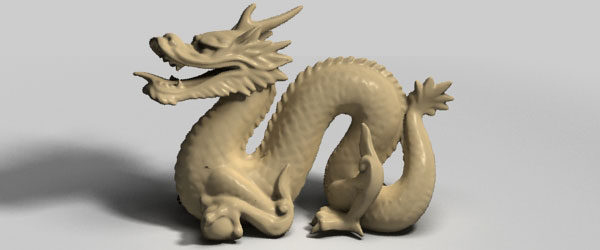

Matte Plastic

Matte plastic removes most of the reflection from the plastic material above, and tones down the specularity and reflection significantly.  This is approximately the same as the “Wall Paint” pro material type.

Matte Plastic

Masonry

The masonry material can be difficult to work with since getting realistic results often requires manipulating diffuse maps.  Masonry is another good choice for distant objects.

Masonry

Rubber

The rubber material is a little too specular for my tastes, but ultimately a convincing material under realistic lighting conditions.  This material is more like industrial rubber rather than tire rubber, so for automotive renders consider reducing the specularity/glossiness further to get a dirtier look.  The Oren-Blinn shader should help also.

Rubber

Leather

The leather material is a dark, rough, but glossy material suitable for a wide variety of skins and clothing.  You’ll need a convincing diffuse map in order to achieve superior results.

Leather

Glass (Thin Geometry)

The thin geometry glass material is made for objects that are made of a single sheet of polygons or very thin closed geometry like soap bubbles.  In the case of thin geometry, the material is instructing mental ray to render the surface as two-sided such that the render is extremely fast for translucent objects and light is still colored as it exits the object.

Glass, Thin Geometry

Glass (Solid Geometry)

The solid geometry glass material is the usual one-sided glass material we’re all used to.  As light enters one side of the object it undergoes refraction and this process occurs again as light exists the other side of the object.  In this case, the material is still an approximation, so light traveling through the object isn’t colored based on distance, but instead based on the number of times it enters/exits the 3d object.  You’ll notice that thick and thin areas of the object below undergo the same coloration.

Glass, Solid Geometry

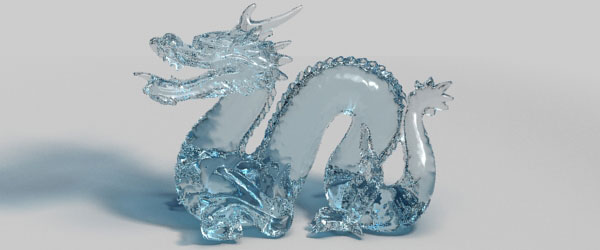

Glass (Physical)

The physical glass material takes the longest to render, but yields excellent results.  The difference with this material is that light is colored based on how long it travels inside of the object.  Thus thick parts of the object below are colored with a deeper blue while thinner areas get less coloration.

Glass, Physical

Translucent Plastic Film (Thin)

The translucent plastic film material is similar to the thin geometry glass material in that it is meant for extremely thin objects and for “one-way trips” through geometry.  The thin translucent material allows a face illuminated on it’s normal side to illuminate it’s backside, too.

Translucent Plastic Film, Thin

Translucent Plastic Film (Opaque)

The opaque translucent plastic film material allows solid geometry to have a translucent effect.  This is useful for objects with closed geometry, but is computationally more expensive than the equivalent thin material.

Translucent Plastic Film, Opaque

Water, Reflective Surface

The reflective water surface material is actually not transparent and a great proxy for water at shallow angles and/or at a distance from the camera.  Consider using it whenever possible to save render time.

Water, Reflective Surface

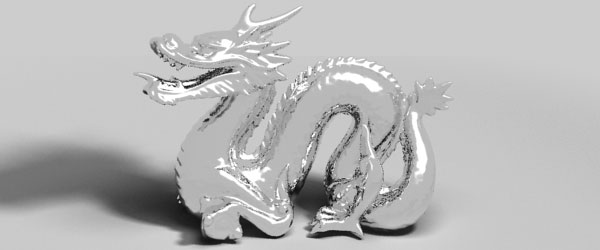

Chrome

The chrome material is simply a 100% reflective material.  This is useful for extremely clean, polished metal surfaces.

Chrome

Brushed Metal

The brushed metal material is a chrome material with blurred reflections.  This is suitable for most metal objects.

Brushed Metal

Satin Metal

The satin metal material is like the brushed metal material but with even more blurred reflections.  This is suitable for stainless steel.

Satined Metal

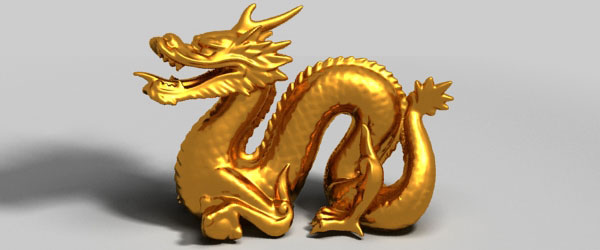

Copper

The copper material is a very shiny colored metal.  It’s closer to brass in my opinion, but it still responds well to realistic lighting and HDRI.  Use it in darker renders if possible since with this white background it looks like gold.

Copper

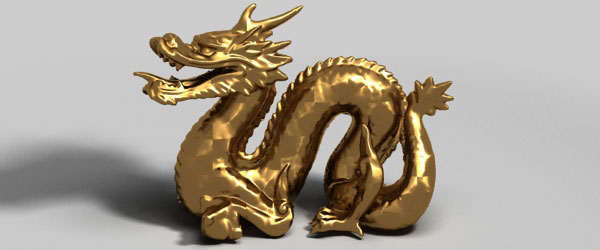

Patterned Copper

The patterned copper material is a darker, duller version of the copper material with an added glossiness, specularity, and reflection shader.

Patterned Copper
